Filter Bags & Media
FRP
Melt Blown Cartridges
Filter bags are essential components in various industrial and commercial filtration processes, designed to separate solid particles from liquids or gases. They are widely used across diverse sectors such as chemical processing, food and beverage, pharmaceuticals, automotive, and wastewater treatment, playing a crucial role in product purity, environmental protection, and equipment longevity.
Filter Requisite
Pleated Filters Cartridges
Multi Port Valves
Wound Cartridges
Filter Hosing Systems
Pleated Filters Cartridges
APPLICATIONS
FEATURES
-
Sea Water Desalination
-
Economic options for water treatment
SPECIFICATION
Material
-
Food & Beverages
-
Broad Chemical Compatibility
Outer: Polypropylene
Option Inner Core & End Caps: Polypropylene
-
General Water Treatment
-
Chemicals
-
100% Polyproperlene
Dimensions Length: 5/10/20/30/40/50/60/70 inch
-
Other
-
Perfect fitting with all other brands
5/10/20 (Big Blue)
-
Nomial & Absolute available
Outer Dia: 2.5 inch & 4.5 inche (Big Blue
Inner Dia: 29.5mm +/-0.5mm
OPERATION CONDITIONS
-
Max tempeature: -70C
Reccomended diiferential
pressure for change-out: 1.8-21 bar
.jpeg)
PLEATED DUST COLLECTOR BAGS
TECHNICAL SPECIFICATION
CRAFTED BY EXPERTS FOR DURABLE FILTRATION
Raw Material
-
Polypropylene/Polyester
Stainless Steel
Tinned Steel Core
-
Crafted from top-tier polypropylene ensuring robustness for extended & High quality filtration
-
Reinforced with Tinned Steel Core, providing reliability and consistent performance
-
Versatile sizes for various needs
Internal Dia
Length
-
28mm
-
10", 20", 30, 40" Single Drawn Core

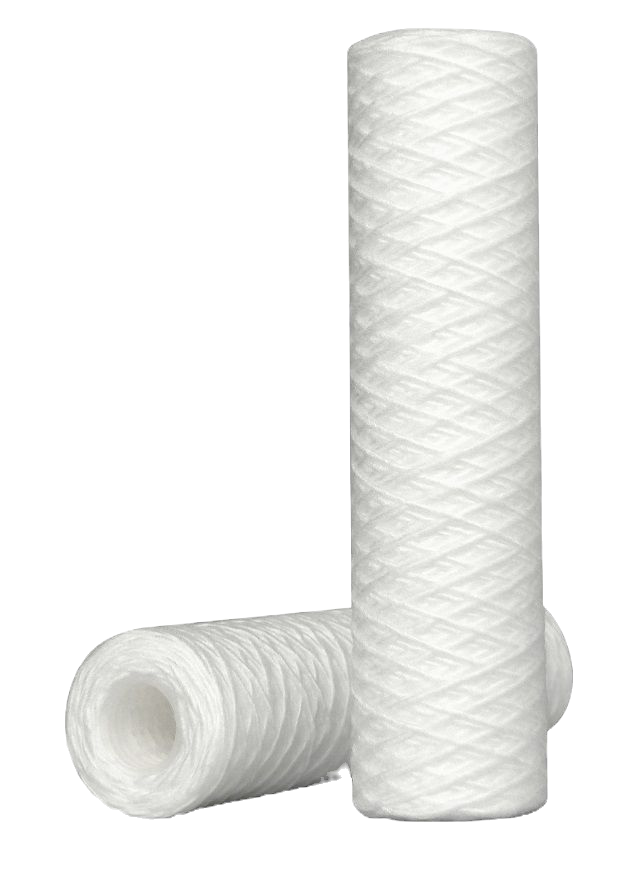

STRING WOUND FILTER
APPLICATIONS
-
General Water Treatment
-
Food & Beverages
-
Petrochemical process
-
Chemicals Plating Solutions
FILTER YARN
UNMATCHED STRENGTH & EFFICIENCY WITH HIGH ABSORBTION YARN
-
Uniform breaking strength along the entire length
-
High dirt holding capacity
-
Low flow resistance
-
High filtration efficiency and life of the filter
Features
-
Material available in polypropylele , cotton glass fiber
-
Broad chemical compatibility to meet a wide
range of applications
-
True depth filtration, high dirt holding capacity, great efficiency
-
No odour, no foaming and no media migration
Fits most standard housings
SPECIFICATIONS
Outer Diameter: Φ 63(2.5")/114(4.5) mm Inner Diameter: $ 28 mm (1.10") Micron Rating: 5-100 Microns Length: 10", 20", 30", 40", 50", 60", 70
TECHNICAL SPECIFICATION
Fiber
Spining Technology
Core Spun Yarn
Fiber Denier
Package Size
Polypropylene/Polyester
Dref friction spun yarn count of yar: 0.4-1.0 Ne
Multi filament yarn in the core
1.4-6 Denier
4.5-6.5 kg/spool

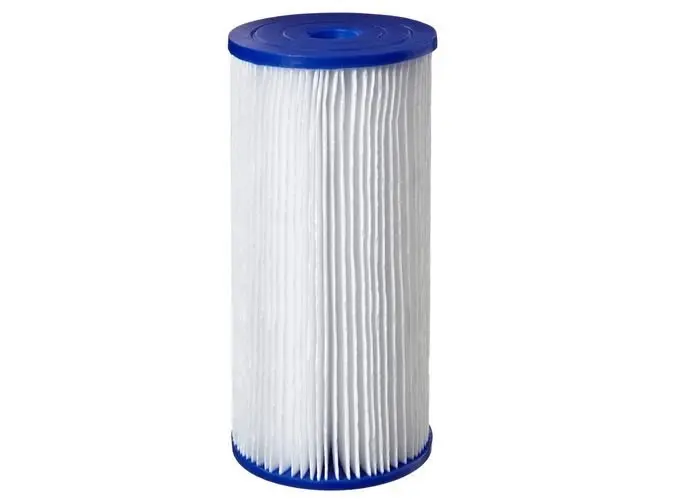

PLEATED FILTER CARTRIDGES
TECHNICAL SPECIFICATION
TAILORED FOR PURE WATER WITH PRECISE DESIGN
-
Internal Dia: 27mm
-
Outer Dia: 65mm or as requested
-
Innovative construction ensures pure water consistently in a sleek and seamless design
-
Customized precision with micron options ranging from 0.1 to 10 micron
-
Construction with premium virgin polypropylene
-
Microns: 0.1, 0.2, 0.45, 1.2, 5 & 10
-
Length: 5/10/20/30/40/50
-
Raw Material: Virgin Polypropylene
-
Temperature: 60 degree Celcius
-
Construction: Inside and Outside perforated core. In between pleated membrane filtration media
-
Top & bottom: DOE (Double Open End) SOE (Single Open End)
-
Flow: 1 cubic meter per hour 10" at pressure 2.5kg/cm2

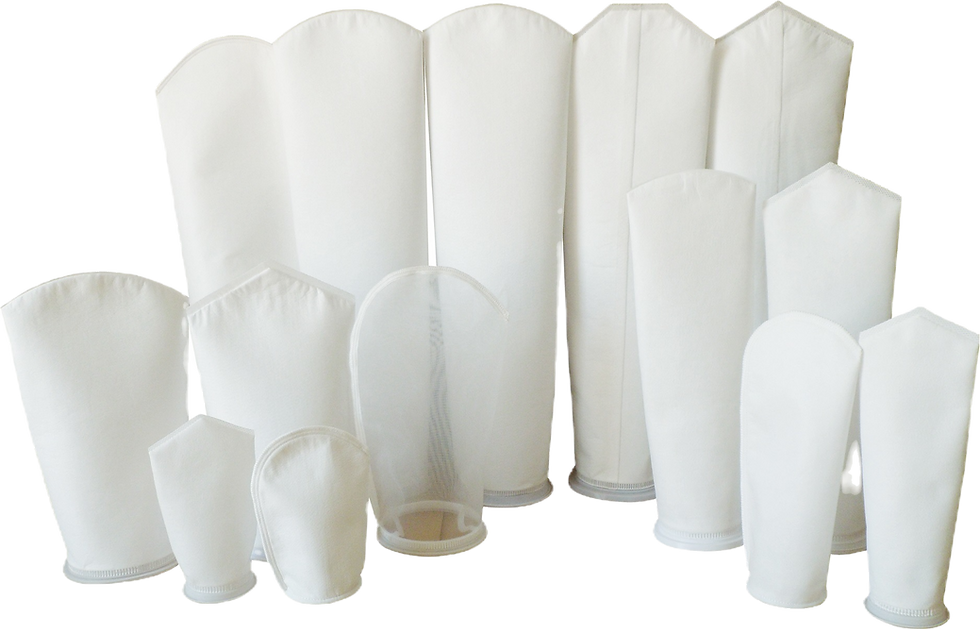

FILTER BAGS
Filter bags are a widely used and economical solution for liquid filtration across various industries. Designed for both batch operations and continuous high-flow systems, they deliver reliable performance in capturing impurities. With micron ratings ranging from 0.5µ to 400µ, they offer flexibility for fine to coarse filtration. For more demanding applications, multilayer filter bags provide enhanced efficiency, achieving filtration rates of over 90% for superior contaminant removal.
POLYPROPYLENE

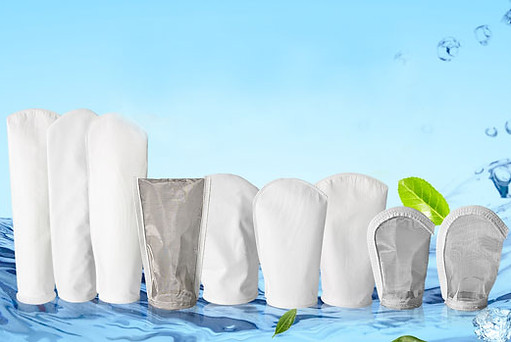

NYLON
POLYESTER
The filter bags are developed with 100% fibers of polypropylene, free of any glues or resins which may interfere in the performance of these polypropylene fibers These filter bags are also made to conform to NSF and FDA for food contact.
The bags are made using monofilament nylon fibers to attain the desired filtration level. They are suitable in applications that involve extremely high temperatures and pressures and are commonly used in industries that involve fine filtration
We manufacture and supply filter bags in a variety of materials and sizes to suit diverse filtration needs. Available sizes include 4"x10", 4"x17", 4"x20", 6"x20", 7"x17", and 7"x32". Micron ratings range from 1 to 200, including 1, 2, 5, 10, 25, 50, 100, 150, and 200 µm, offering precise filtration for various applications.
They are invidiously selected in view of their excellent chernical abrasion, and high-temperature resistance Polyester bags are used for filtration processes and suit a wide range of needs -both surface and depth filtration.
FILTER HOUSING
APPLICATIONS
OPERATION CONDITIONS
Whole-House Filtration Point of Entry Filtration RO Pretreatment Commercial Applications
Max Temperature: - 70 C Reccomended Temperature: <45 C Max Working Pressure: - 8 bar Reccomended Working Pressure: <6
PRODUCT FEATURES
-
5", 10" & 20" lengths available in opaque & clear bowls
-
Optional pressure release button
-
Accepts up to 4.5" diameter cartridges
-
Wide chemical compatibility using Polypropylene & ABS construction
-
Easy installation by thread
ACTIVATED CARBON
Granular activated carbon, often abbreviated to GAC, is high purity form of carbon characterised by its vast surface area and is used in many purification applications in both the liquid and gas phase. Particle sizes of the granules typically range from around 0.2mm up to 5mm. The adsorptive capacity of granular activated carbon (GAC) makes it ideal for removing a variety of contaminants from water, air, liquids and gases.
FILTER CAGE
Filter Bag Cages are the support system for filter bags in a bag house. Its quality in aesthetics, finish and dimensional accuracy plays a vital role in defining the life of the filter bags
.jpg)
DUST COLLECTOR BAGS
The filter bags are the heart of any dust collector / bag house. Its quality and performance defines the efficiency of the dust recovery and pollution control. The application industries cement, steel, power include plants, pharmaceutical, incinerators, ceramic, salt processing, metallurgical, welding fumes, graphite, shot blasting etc.
PLEATED DUST COLLECTOR BAGS
The pleated bags can be retro-fitted in existing bag collectors, increasing the air volume passing through each bag. The pleated bags are a novel concept for dust collection. This product is made of very high quality spun bonded polyester, which can give cleaning efficiency of upto 99.999% for dust particles as small as 0.3 micron. The media is coated with PTFE to handle sticky dusts.
PLEATED DUST COLLECTOR CARTRIDGES
Pleated Dust Collector Cartridges are basically customised pleated bags. These cartridges can be provided in diameters of 150/225/325mm with lengths upto 2000mm. The area per cartridge can range from 0.96 to 20 sq mtrs per cartridge. These are manufactured with either SS or MS top and bottom.
SOLENOID VALVE
Solenoid Valve are used to pulse compressed air in reverse pulse jet type dust collectors. These are right angled type valves with inlet and outlet ports at 90deg to each other. available in standard sizes of %", 1", 1/2", 2". The coils can be provided with 24V DC or 230V AC configurations.
